Gialer RFID PCB Tag RFID anti-metal Tag label -- 5010

$19.90

Quantity: 10PCS

  • 10PCS
  • 100PCS

Tape: Without 3M double-sided tape

  • Without 3M double-sided tape
  • With 3M double-sided tape
Will not ship until [19041994]
$19.90
Out of stock
Order in the next to get it between and hoursminutes

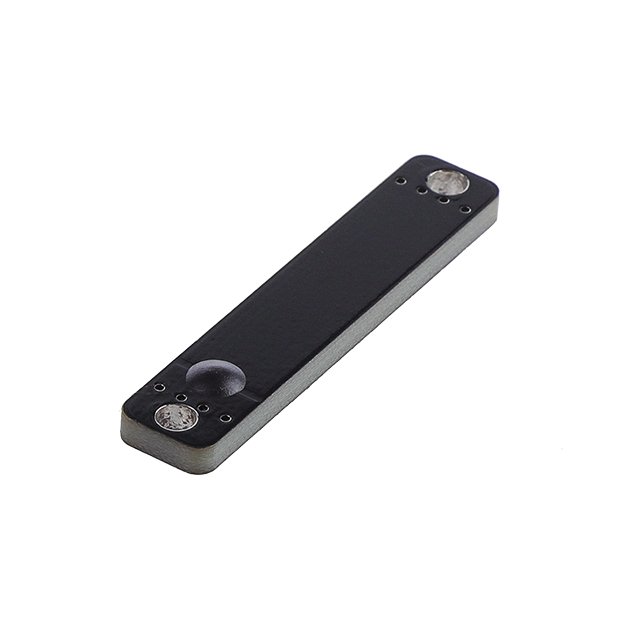

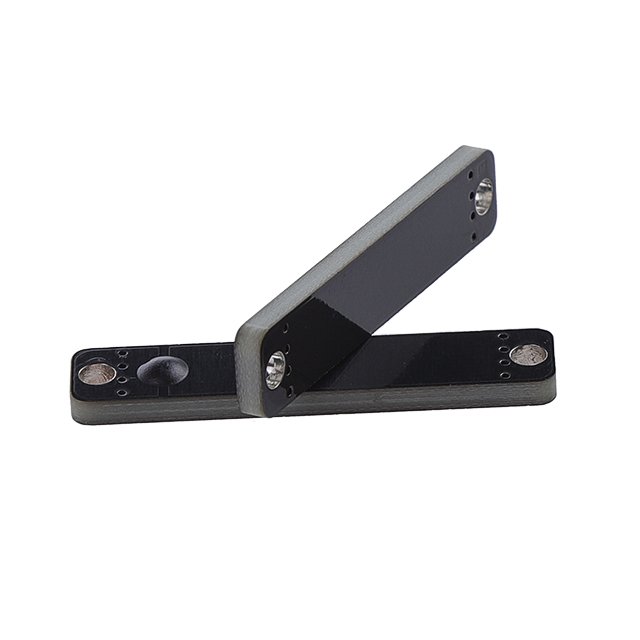

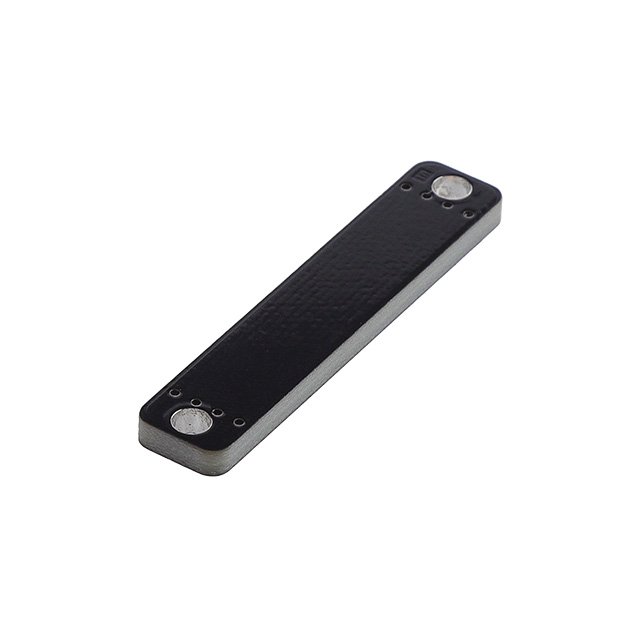

  Gialer RFID PCB Tag RFID anti-metal Tag label -- 5010

  •   Type Number:10-PCB5010
  • On Metal applications.
  • Frequency options:FCC / ETSI / CHN.
  • Size: 50mm L x 10mm W x 3mm H
  • A popular and smaller size UHF Tag used on metal surfaces, It does a stable and reliable UHF on metal tag, which is widely used in indoor asset management.
  • Be of good RF performance, work stably on metal surface.
  • 100% memory writing tested.
  • Both material and design have been tested for reliability.
  • 100% function tested by Voyantic Tagformance.
  • Can customize size for customers.
  • It can be fixed by tape, screw, or rivet.
  • Painted ones can be used in outdoor.

Download: 5010 RFID PCB Tag Datasheet.pdf

A classic UHF Tag used on metal surfaces.

It does a stable and reliable UHF on metal tag, which is widely used in indoor asset management.

ADVANTAGES:

  •         Be of good RF performance, work stably on metal surface.
  •         100% memory writing tested.
  •         Both material and design have been tested for reliability.
  •         100% function tested by Voyantic Tagformance.



MAIN FEATURES:

  •          Can customize size for customers.
  •          Flexible and convenient installation.
  •          Painted ones can be used in outdoor.
  •          Logo can be printed on the surface of painted tag.



APPLICATIONS:

  •          Tool and storage management.
  •          IT equipment management.
  •          Metal containers management.
  •          Metal equipment management.
  •          Personnel patrol management.
  •          Fixed asset management.



CHARACTERISTICS:

 Compliance

 EPC Class1 Gen2; ISO18000-6C

 Frequency

 902-928MHz , 865~868MHz (Can customize frequency)

 Chip

 NXP UCODE 8

 Memory

 EPC 128bits

 Read/write

 Yes

 Data Storage

 50 years

 Warranty

 One year

 Material

 FR4

 Dimension

 50mm L x 10mm W x 3mm H

 Storage Temperature

 -40℃~ +110℃

 Operating Temperature

 -25℃~ +70 ℃

 Storage humidity

 5%~95%

 Delivery format

 Single

 Installation Method

 Screw, rivet, glue, or 3M300LSE tape (standard)

 Weight

 ~ 10g

 Package

Bubble bag and carton

 Color

 Black

 Power Supply

 Passive

 Drop Test

 1 meters high, 200 drop test passed

 Alcohol test

 95% alcohol test passed

 Gasoline test

 Passed

 High & low temperature shock test

 -40℃ ~ +70℃, 7 cycles, total 48 hours

 Temperature cycle test

 -40℃~+70, 7 times cycle time testing, 48 hours total

 RoHS

 Compatible

 Read distance on metal surface

 Up to 3 meters (EIRP=4W Alien9900 fixed reader)

 Up to 1.8 meters ( With Alien9011 handheld reader)

 RF performance consistency test

 100% tested by Voyantic Tagformace

 Options

 Surface laser, surface LOGO screen printing, pre-   encoding, surface pattern processing,

 surface painting, surface printing.

Quantity

10PCS, 100PCS

Tape

Without 3M double-sided tape, With 3M double-sided tape
