Waterproof Washable UHF Textile Laundry RFID Tag 7015 for Laundry Management

$15.99

Quanlity: 10PCS

  • 10PCS
  • 100PCS
Will not ship until [19041994]
$15.99
Out of stock
SKU: N/AAvailability : In StockIn StockOut of stock
Order in the next to get it between and hoursminutes

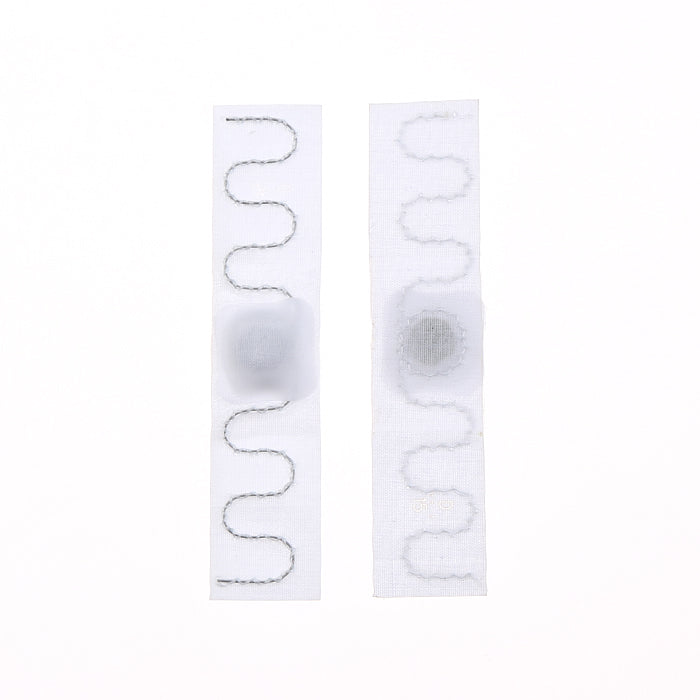

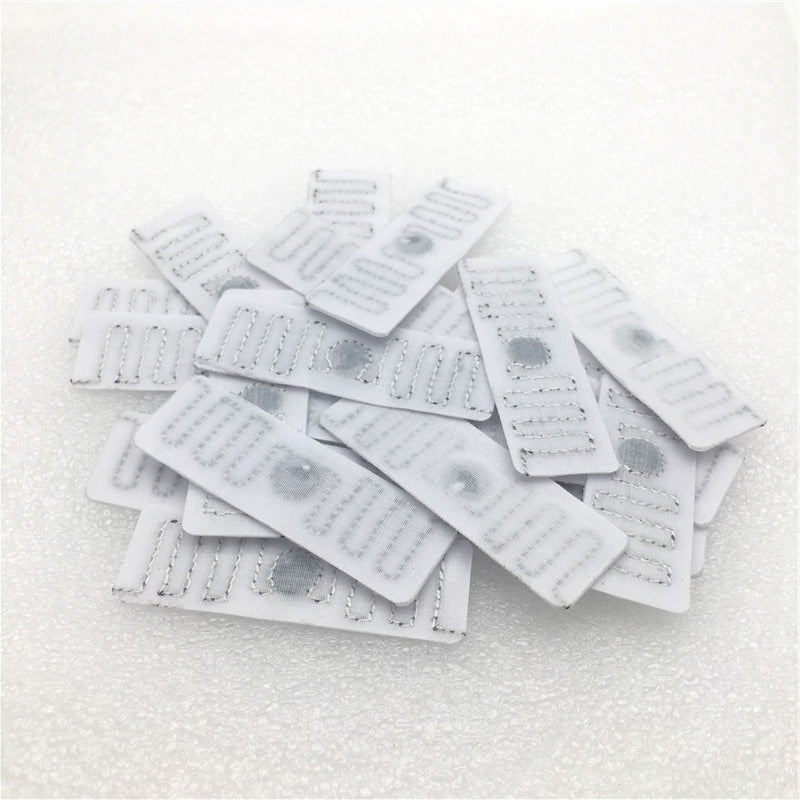

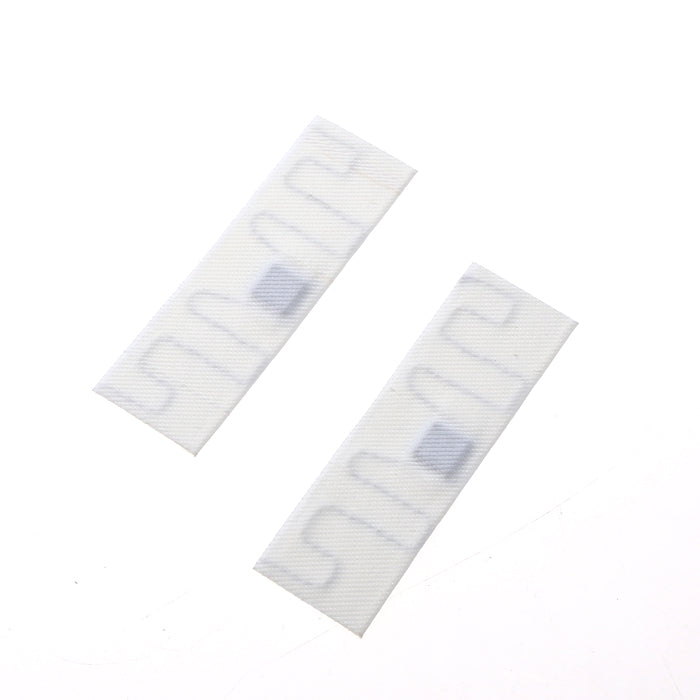

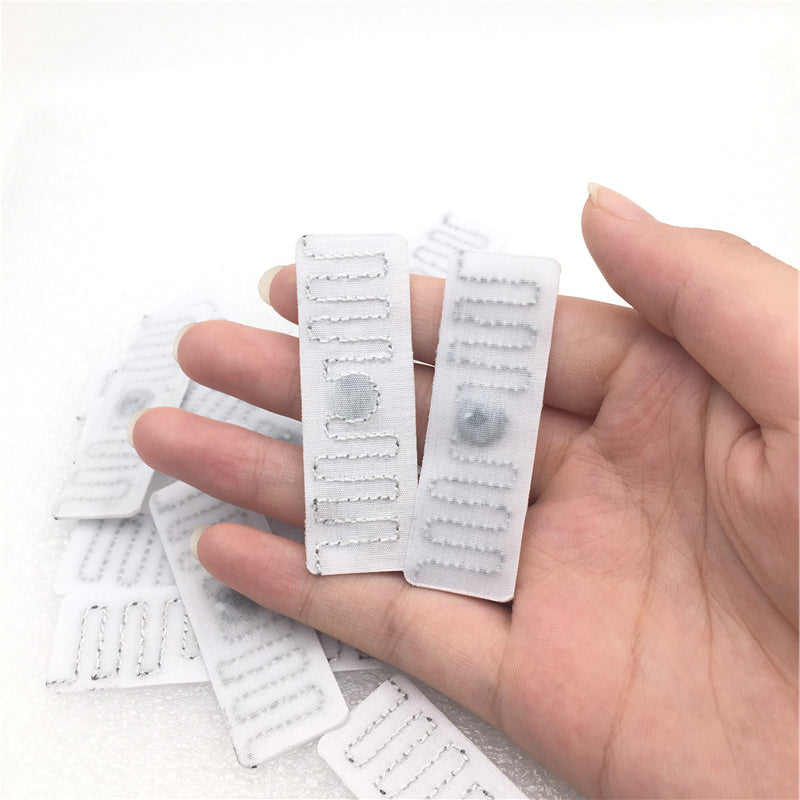

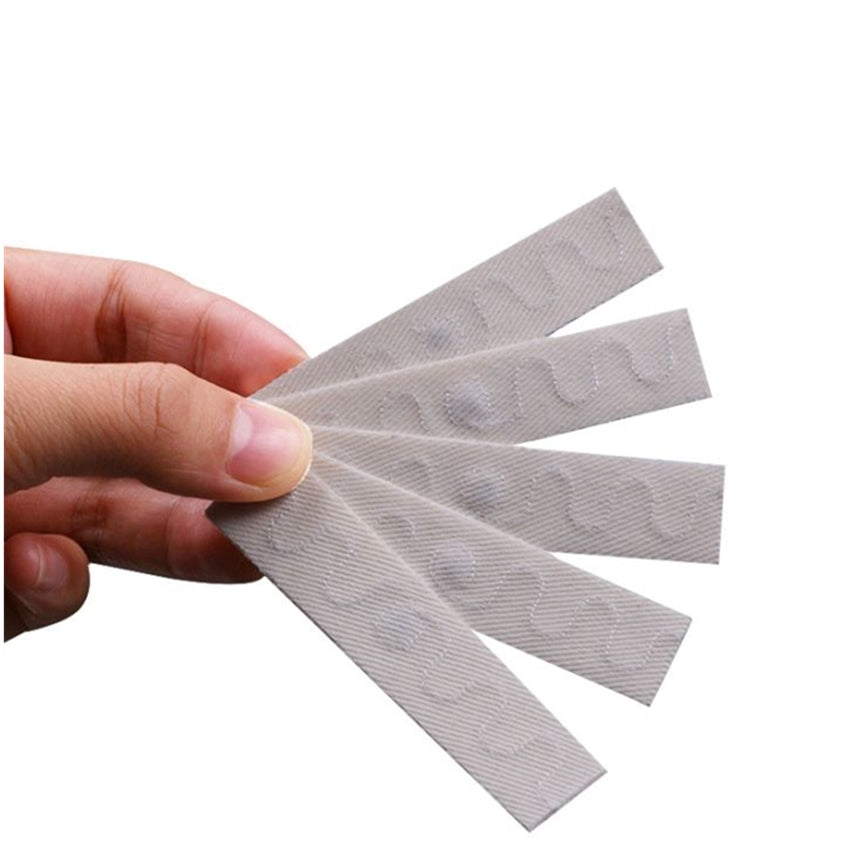

Gialer Textlie UHF RFID Tag have been specifically designed to identify linen and textile produces to meet the tracking requirements of the laundry industry in terms of shape, robustness and ease of fixation.
Gialer UHF RFID Tags is based on a unique and patented concept developed by Gialer, It uses a very small UHF device coupled to a sewed secondary antenna made of an innovative and flexible thread.
Gialer Textlie UHF RFID Tags is easily affixed onto textile products using a standard sewing or patching process. It can also be sewed along the edge of the item or incorporated in the hem.
Gialer Textlie UHF RFID Tags can be read at distances over 3 meters when used in conjunction with UHF Reader.

Download: Laundry7015 Datasheet


Gialer Textlie UHF RFID Tags contributes to :
Automate operational processes inside the laundry.
Accelerate and improve the accuracy of information flows between the laundry and its customers.
Provide reliable status on linens availability at laundries and end-users sites.
Offer a new range of client services such as loss prevention and real-time storage management.


Size:
70*15*1.5mm

Material:
UHF Module:encapsulated chip, epoxy
Antenna:Multi threads, woven ,stainless steel
Fabric label:Polester

Color: White (Color can be customized)
Read write time: 0.01MS
Chips:NXPU CODE 7M

Storage capacity: 128bits
Cycle life: More than 200 cycle life

Installation method: Sewing

Working distance: 1cm~4cm (It is related to size of the antenna and power of card reader)

Application/storage tepreture:(-50°F~392°F)
Washing: 194°F/15minutes
Ironer:  374°F/12seconds
Pre-drying: 356°F/20minutes
Sterilization: 275°F/20minutes

Apply to: Widely used in clothing factories, laundry, medical logistics, chemical materials, high temperature war resistance and corrosion resistance bad environment.

CHARACTERISTICS:

Compliance

EPC Class1 Gen2; ISO18000-6C

Frequency

902-928MHz , 865~868MHz (Can customize

frequency)

Chip

NXP Ucode7M / Ucode8

Memory

EPC 96bits

Read/write

Yes (EPC)

Data Storage

20 years

Lifetime

200 wash cycles or 2 years from shipping date

(whichever comes first)

Material

Textile

Dimension

70( L) x 15( W) x 1.5( H) (Cancustomizethesizes)

Storage Temperature

-40℃~ +85 ℃

Operating Temperature

Washing: 90℃(194οF), 15 minutes, 200 cysle

Pre-drying in Tumbler: 180℃(320οF), 30minutes

Ironer: 180℃(356οF), 10 seconds, 200 cycles

Sterilization Process: 135℃(275οF), 20 minutes

Mechanical Resistance

Up to 60 bars

Delivery format

Single

Installation Method

7015-7M :Thread installation

Weight

~ 0.7g

Package

Antistatic bag and carton

Color

White

Power Supply

Passive

Chemicals

Normal common chemicals in the washing processes

RoHS

Compatible

Read

distance

Up to 5.5 meters (ERP=2W)

Upto 2 meters( With ATIDAT880handheldreader)

Polarization

Liner





Quanlity

10PCS, 100PCS
