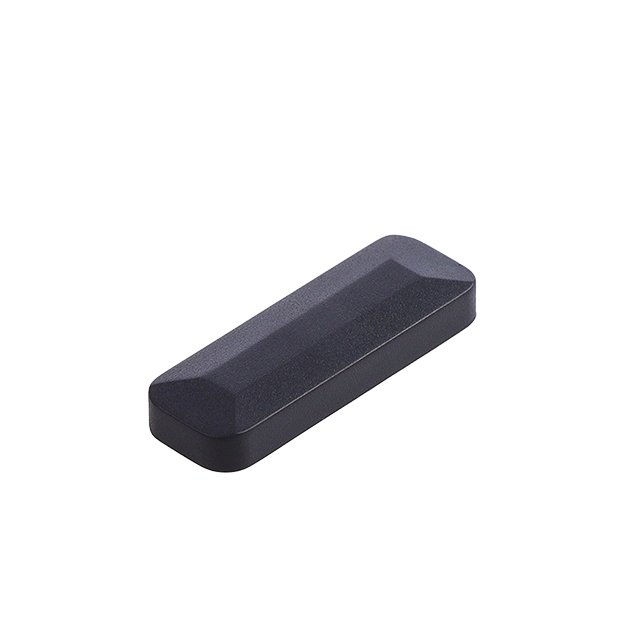

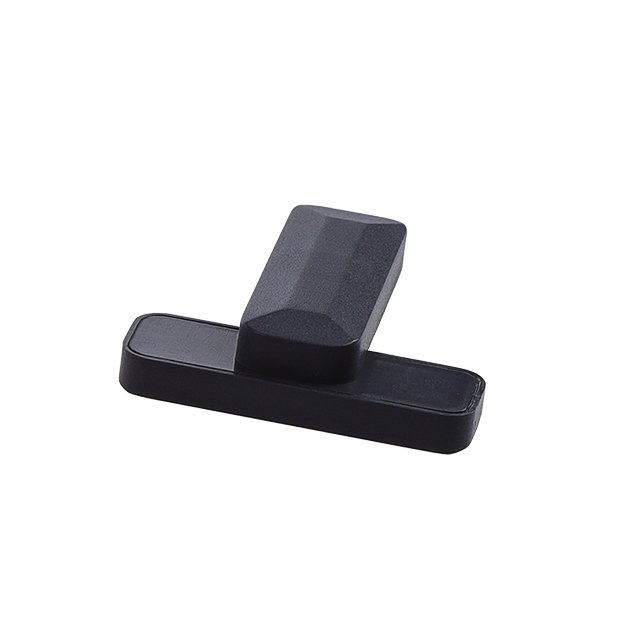

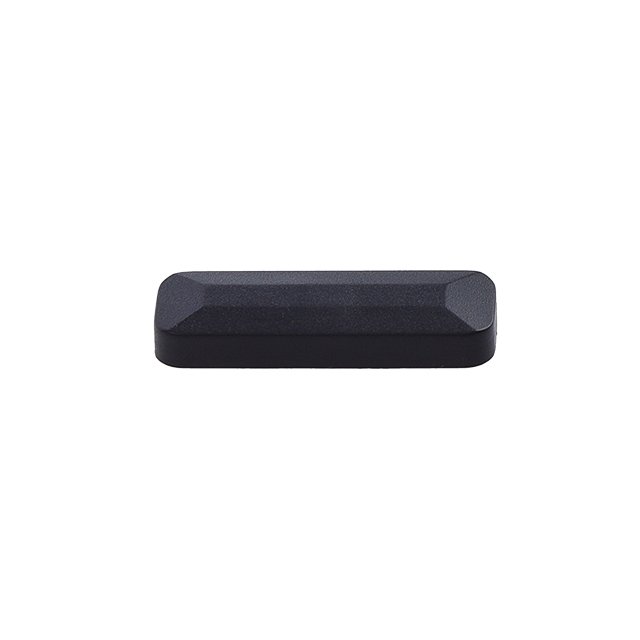

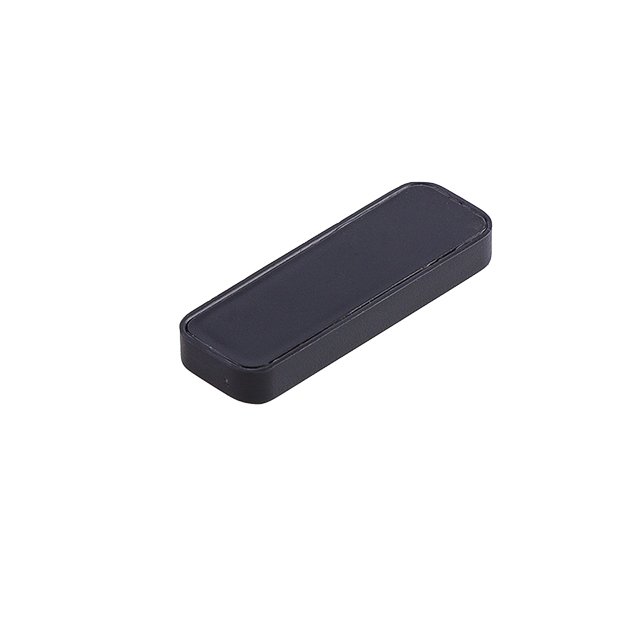

Gialer UHF RFID Plastic Encapsulated Tag for management -- 3512

$39.90

Quantity: 10PCS

  • 10PCS
  • 100PCS
Will not ship until [19041994]
$39.90
Out of stock
SKU: N/AAvailability : In StockIn StockOut of stock
Order in the next to get it between and hoursminutes

Gialer UHF RFID Plastic Encapsulated Tag for management -- 3512

  • Type Number: 10-Pls3512
  • On Metal or Off Metal applications.
  • Frequency options: FCC / ETSI / CHN.
  • Size:35mm L x 12mm W x 5.1mm H
  • A cost effective UHF Tag used on metal surfaces.
  • It can work stably and reliably on metal surface and off metal surface, which is widely used in indoor and outdoor asset management.
  • Work stably on metal surface amd off metal surface.
  • 100% memory writing tested.
  • Both material and design have been tested for reliability.
  • 100% function tested by Voyantec Tagformace.
  • Can customize size for customers.
  • We can screen printe customer's logo on the surface of tag, and can laser barcode on it.
  • Resistant to acid-base, waterproof.
  • It can be fixed by tape, screew, or rivet.

 A popular UHF Tag used on metal surfaces.

It does a stable and reliable UHF on metal tag, which is widely used in indoor and outdoor asset management, the quality of this module is superior to similar products of the same size.



ADVANTAGES:

  •         Be of good RF performance, work stably on metal surface.
  •         100% memory writing tested.
  •         Both material and design have been tested for reliability.
  •         100% function tested by Voyantec Tagformace.

MAIN FEATURES:

  •          Can customize size for customers.
  •          Flexible and convenient installation.
  •          Painted ones can be used in outdoor.
  •          Logo can be printed on the surface of painted tag.
  •          Can be lasered with barcode and serial number.

APPLICATIONS:

  •          Storage management.
  •          IT equipment management.
  •          Metal containers management.
  •          Metal equipment management.
  •          Personnel patrol management.
  •          Fixed asset management.

 CHARACTERISTICS:

Compliance

EPC Class1 Gen2; ISO18000-6C

Frequency

902-928MHz , 865~868MHz (Can

customize frequency)

Chip

NXP U7M

Memory

EPC 128bits User 32bits

Read/write

Yes (EPC and User)

Data Storage

50 years

Warranty

One year

Material

ABS

Dimension

35mm L x 12mm W x 5.1mm H

Storage Temperature

-30

℃~ +80 ℃

Operating Temperature

-25

℃~ +80℃

Storage humidity

5%~95%

Delivery format

Single

Installation Method

Screw, rivet, glue, or 3M300LSE tape

Weight

~ 3g

Package

Bubble bag and carton

Color

Black

Power Supply

Passive

Drop Test

1.5 meters high, 100 drop test passed

Alcohol test

95% alcohol test passed

Gasoline test

Passed

High & low temperature

shock test

-40   ℃ ~ +70℃, 7 cycles, total 48 hours

Temperature cycle test

-40℃~+70℃, 7 times cycle time testing,

48 hours total

RoHS

Compatible

Read distance on metal surface

Up to 4 meters (EIRP=4W)

Up to 1 meters ( With ATID AT880 handheld reader)

RF performance

consistency test

100% tested by Voyantic Tagformace

Options

pre-encoding, Barcode laser, logo

Quantity

10PCS, 100PCS
